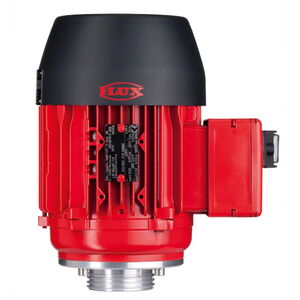

Motor F 403

The three-phase motor for highly viscous media

  • Motor F 403

The three-phase motor F 403 is very low-wear. Furthermore, it convinces with its constant speed and the very low noise level. With the speed of 2850 rpm it is suitable for media with a viscosity up to 30 000 mPas. With the speed of 1450 rpm it is suitable for media with a viscosity up to 80 000 mPas.

Technical datas:

  • Protection class: IP 55
  • Ex: II 2 G Ex e II T3/T4
  • Ventilation: External
  • Tension (Volt): 230 V, 400 V
  • Frequency: 50 Hz
  • Performance (watt): 550 W
  • Weight: 8 kg

Advantages

  • Very low wear
  • Constant speed
  • Very low noise level
  • With the speed of 2850 rpm it is suitable for media with a viscosity up to 30 000 mPas
  • With the speed of 1450 rpm it is suitable for media with a viscosity up to 80 000 mPas
