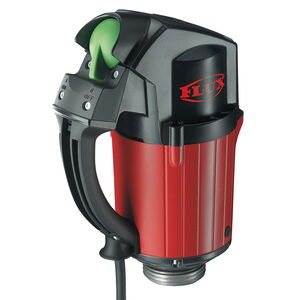

Motor F 458

The robust drum pump motor

  • Motor F 458

The F 458 is a compact commutator motor, has an extremely tough housing with double skin in aluminium and is thus very quiet. The motor is completely closed, has a special corrosion-resistant painting and is therefore suitable for use in extreme conditions, even in areas with corrosive vapours.

The motor F 458 EL has additionally an easy to handle electronic speed adjustment to regulate the delivery rate.
The motor F 458-1 is identical with type F 458, but has with 700 watts a much higher performance. This motor is used when a higher capacity is required or when slightly viscous fluids or media with an increased density have to be pumped.

Technical datas:

  • Protection class: IP 55
  • Ventilation: external
  • Tension (Volt): 12 V, 24 V, 110 V, 120 V, 230 V, 240 V
  • Frequency: 50-60 Hz
  • Performance (watt): 460/700 W
  • Speed adjustment: Optional
  • Weight: 5,1/5,9 kg
  • Integral no-volt release: Optional

Benefits:

  • Very robust housing in aluminium
  • With special corrosion-resistant painting
  • Very low noise level
  • Motor is completely closed
  • F 458-1: 700 W
  • F 458 EL: with infinitely speed adjustment
