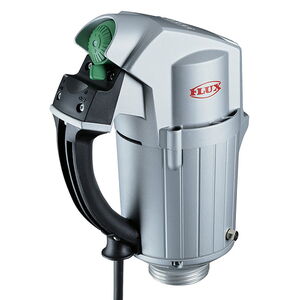

Motor FBM 4000 Ex

The world's first brushless drum pump motor

  • Motor FBM 4000 Ex

The FBM 4000 Ex is a compact brushless motor, has an extremely tough housing with double skin in aluminium and is thus very quiet. The soft-start and easy to handle speed control, which is integrated in the control knob, allow a sensitive dosing. Speed, current and temperature are monitored electronically. The integrated no-volt release prevents an uncontrolled start of the pump, thus guaranteeing optimal safety.

Technical datas:

  • Protection class: IP 55
  • Ex: II 2 G Ex d e IIC T6
  • Ventilation: External
  • Tension (Volt): 230 V
  • Frequency: 50-60 Hz
  • Performance (watt): 600 W
  • Speed adjustment: Infinitely
  • Weight: 6,2 kg
  • Integral no-volt release: Yes

Benefits:

  • Very low wear
  • Maintenance-free
  • Low life cycle costs
  • With infinitely speed adjustment
  • Very low noise level
  • An extremely tough housing with double skin in aluminium
  • Increased duration possible
