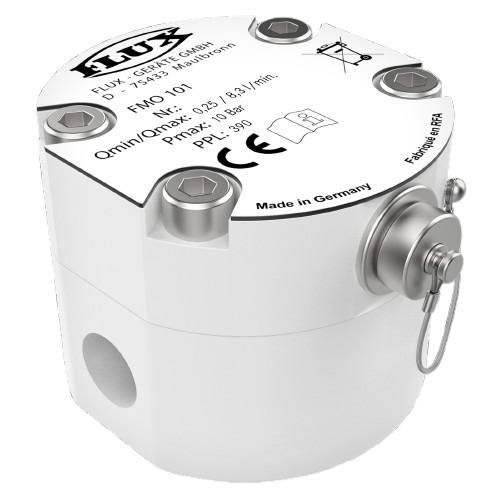

FMO 101

Flow meter for 0,04 - 1,67 l/min

Branch: IndustrieBranch: OberflächentechnikBranch: PetrochemieBranch: LandwirtschaftBranch: Wasser-/AbwasseraufbereitungBranch: Farben und LackeBranch: Chemie
  • .

The flow meter FMO 101 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier.  This way e.g. motor and / or magnetic valve and the most different processes can be controlled.
  • Application areas: Ex

Technical data:

  • Flow rate: min. 0,04 l/min - max. 1,67 l/min
  • Filling accuracy: +/- 1 %
  • Operating pressure: max. 100 bar
  • Viscosity: max. 1000 mPas
  • Housing Materials: Polyvinylidene fluoride, Stainless steel
  • Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents

Product attributes

  • Oval rotor design
  • For thin to highly viscous pure media
  • Available with  integrated evaluation unit  FLUXTRONIC® or as impulse version
  • For the use in piping systems
  • High accuracy and repeat accuracy
  • Signal can be forwarded to FLUXTRONIC® or another external control as e.g. PLC
  • Can be displayed in liter, gallons or kilogram
  • Semi-automatic filling with a switching amplifier possible
  • Version in stainless steel can be used for ex-applications in Zone 1

Benefits

  • Very precise dosing possible
  • High resistancy
  • Wide range of viscosities can be covered
  • Can also be used for pulsating volume flows
  • Low pressure loss
