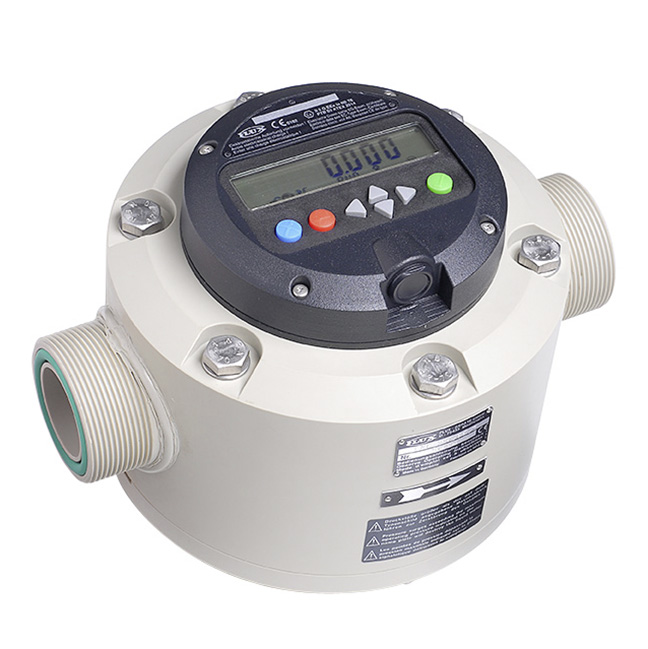

FMC 250
For plant engineering
FLUX flow meters FMC 250, built to the nutating disc principle (FMC), are designed for the stationary use in e.g. piping systems. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled.
Technical data:
- Flow rate: min. 25 l/min - max. 250 l/min
- Filling accuracy: +/- 1 %
- Operating pressure: max. 6 bar
- Size of solids: max. 1,5 mm
- Viscosity: min. 1 mPas - max. 2500 mPas
- Housing Materials:
- Media / Fluids:
Product attributes
- Nutating disc meter
- Inductive counter - independent of the conductance of the medium
- Insensitive to small solids
- Easy Handling
- Easy assembly on pump
- No metals in the medium area- also for non-lubricating media
- High resistancy
- No mains connections required
Benefits
- Insensitive to small solids
- Easy Handling
- Control by PLC possible
- Easy assembly
- Batch operation possible
