JUNIORFLUX for AdBlue®

Branch: PetrochemieBranch: Landwirtschaft
  • .

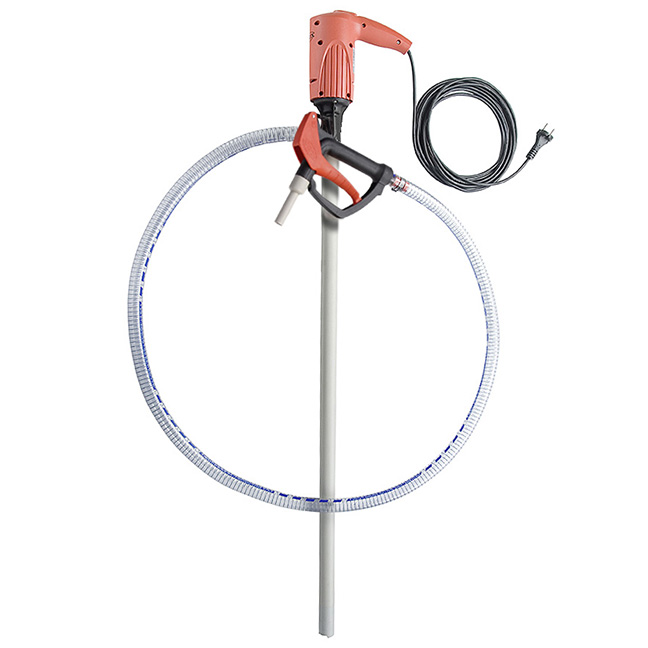

The small drum pump JUNIORFLUX with fixed motor FEM 3070 is especially suitable for pumping comparably small quantities out of containers such as canisters or drums of up to 200 litres. The small outer tube diameter allows pumping even out of narrow openings.

Technical data:

  • Flow rate: max. 36 l/min1
  • Delivery head: max. 6,7 mwc
  • Viscosity: min. 1 mPas - max. 250 mPas
  • Outer tube diameter: max. 32 mm
  • Immersion length: 1000
  • Materials outer tube: Polypropylene
  • Media / Fluids: AdBlue®, Fuels
  • Seal: sealless
  • Container: 200 l drums, Small containers, Hobbocks
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

* AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA) *

Product attributes

  • Sealless in the liquid area
  • With mains connection
  • Powerful commutator motor with brushes
  • Ergonomic design handle
  • Low weight
  • Small outer tube diameter
  • Holding hook for hand nozzle at pump discharge
  • With integrated holder for the pump

Benefits

  • Also suitable for transferring smaller quantities
  • Can pump out of narrow-necked containers
  • Minimal force required to change drums
  • With mains connection - enables very long operating times
  • High operational safety due to overload cut-out switch
  • Easy single-hand operation
  • Hand nozzle always quickly at hand due to holding hook
  • Low storage space required
