For petroleum products

Branch: IndustrieBranch: Petrochemie
  • .

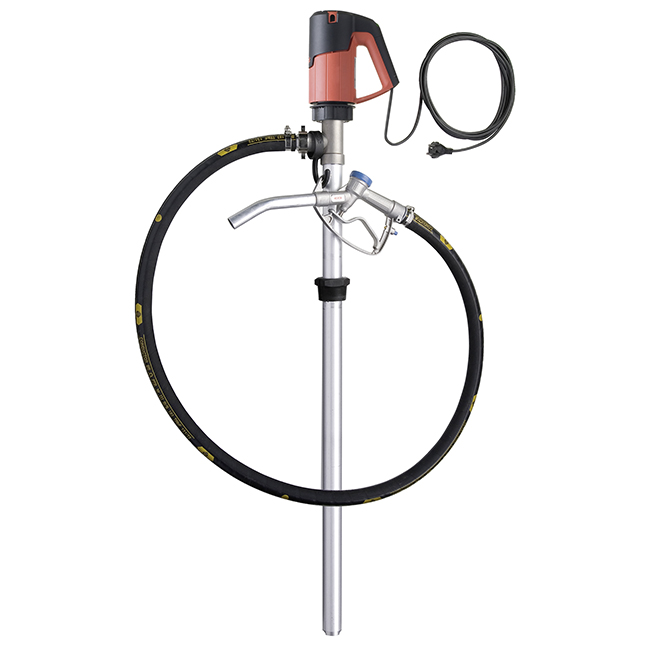

Pre-assembled pump kit to pump petroleum products out of 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430, outer tube material aluminium, optionally with commutator motor FEM 4070 (500 Watt) or commutator motor F 457 (800 Watt) available; furthermore are enclosed: hose, hand nozzle and compression gland.

Technical data:

  • Flow rate: max. 80 l/min1
  • Delivery head: max. 12 mwc
  • Viscosity: min. 1 mPas - max. 1000 mPas
  • Outer tube diameter: max. 41 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Aluminium
  • Media / Fluids: Petroleum products
  • Seal: with mechanical seal
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

  • Pump with mechanical seal
  • Pump can be taken apart into two parts without tools

Benefits

  • Easy disassembly
  • Universally and flexibly applicable
  • Easy to clean as no medium can get into to inner tube
  • No carrying-over of the medium - one pump can be used for different media
  • Also for adhesive media
  • Also for liquids that crystallize or harden
