For high flammable media

Branch: IndustrieBranch: OberflächentechnikBranch: PetrochemieBranch: LandwirtschaftBranch: Farben und LackeBranch: Chemie
  • .

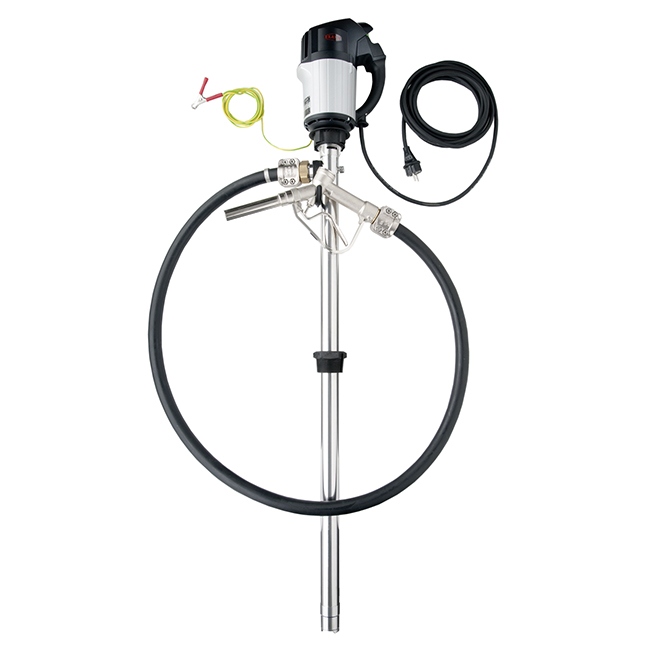

Pre-assembled pump kit to pump high flammable media out of 200 l drums or IBCs. Comprising drum pump F 424, outer tube in stainless steel, hose, hand nozzle and compression gland. As drive either the commutator motor F 460 or compressed-air  motor F 416 are available.
  • Application areas: Ex

Technical data:

  • Flow rate: max. 50 l/min1
  • Delivery head: max. 13 mwc
  • Viscosity: min. 1 mPas - max. 800 mPas
  • Outer tube diameter: max. 43 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Stainless steel
  • Media / Fluids: Highly flammable media, Solvents, Petroleum products
  • Seal: sealless
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

  • No seal in the liquid area
  • Ex protected
  • Free from wear
  • Relief openings provide the same fluid level inside the pump compared to the drum content

Benefits

  • Non-sensitive to dry-running
  • No seal wear
  • No bearing wear
  • No contamination of the medium from lubricants or wear of seal materials possible
  • Medium cannot be contaminated by lubricants
  • Low wear and maintenance
  • Built to last
  • For use in hazardous area
  • Motor also available with speed control
