For Food and Pharma

Branch: PharmazieBranch: Lebensmittel
  • .

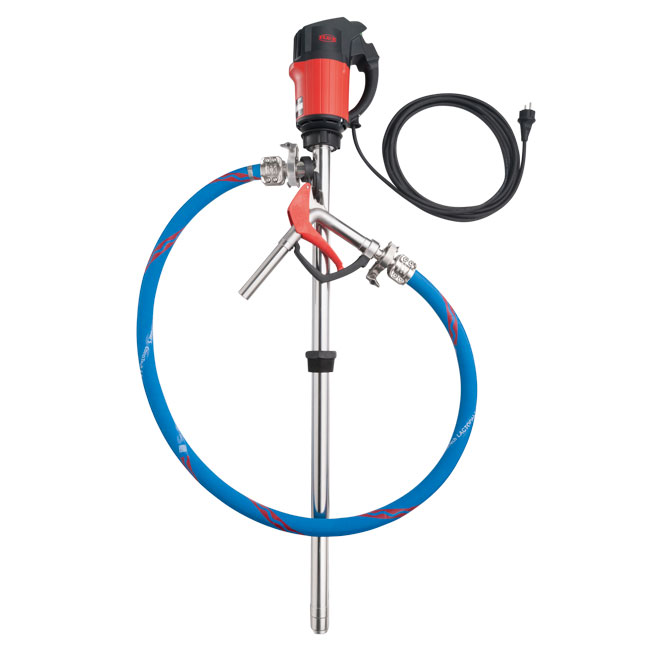

Pre-assembled pump kit for food and pharma. The pump-kit is ideal for hygienic applications and suitable for conveying media out of drums, IBCs and other containers. It can be easily and quickly disassembled for cleaning / sterilization and can be completely stripped down to individual parts. Comprising drum pump FP 427 FOOD, outer tube stainless steel 1000 or 1200 mm, commutator motor F 458, hose, hand nozzle, hose connection and compression gland.
  • Application areas: FDA
  • Application areas: Food

Technical data:

  • Flow rate: max. 50 l/min1
  • Delivery head: max. 8 mwc2
  • Viscosity: min. 1 mPas - max. 1000 mPas
  • Outer tube diameter: max. 43 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Stainless steel
  • Seal: sealless
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.
  • 2 dependent on pump model, motor and medium

Product attributes

  • Sealless in the liquid area
  • Minimal dead spots
  • Can be taken apart completely in only a few steps
  • Disassembly almost without tools possible

Benefits

  • Ideal as hygienic pump
  • Can be quickly and easily taken apart for cleaning
  • All parts in contact with the medium can be sterilized
  • Transfers also fluids containing solids such as juices with pulp or soups with spices
  • Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
  • Also available for the ex-area with drum pump FP 430 Ex FOOD
