For Food and Pharma in Ex-version

Branch: PharmazieBranch: Lebensmittel
  • .

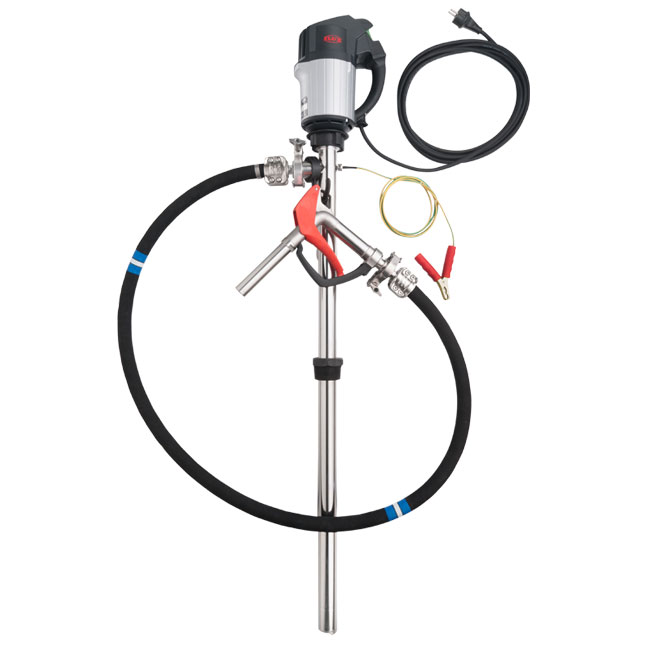

Pre-assembled pump kit for food and pharma in ex-version. The pump-kit is ideal for frequent medium changes and is suitable for conveying out of drums, IBCs or tanks. Due to the construction with mechanical seal, the pump can be easily and quickly taken apart into its two main components. This allows good cleanability. Comprising drum pump FP 430 Ex FOOD, outer tube stainless steel, commutator F 460 Ex, hose, hand nozzle, hose connection, compression gland and earth cable.


  • Application areas: Ex
  • Application areas: FDA
  • Application areas: Food

Technical data:

  • Flow rate: max. 60 l/min1
  • Delivery head: max. 9 mwc2
  • Viscosity: min. 1 mPas - max. 1200 mPas
  • Outer tube diameter: max. 43 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Stainless steel
  • Seal: with mechanical seal
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.
  • 2 dependent on pump model, motor and medium

Product attributes

  • With mechanical seal for sealing the inner tube
  • Pump can be disassembled into two parts: inner tube cpl. and outer tube
  • Grease-lubricated shaft bearing

Benefits

  • Ideal for frequent medium changes, hardening media, fast drying media, crystallizing media
  • Can be taken apart into main components easily and quickly for cleaning
  • Compared to sealless pump higher service life on abrasive media
  • Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
