For alkalis

Branch: IndustrieBranch: OberflächentechnikBranch: PetrochemieBranch: LandwirtschaftBranch: Wasser-/AbwasseraufbereitungBranch: Chemie
  • .

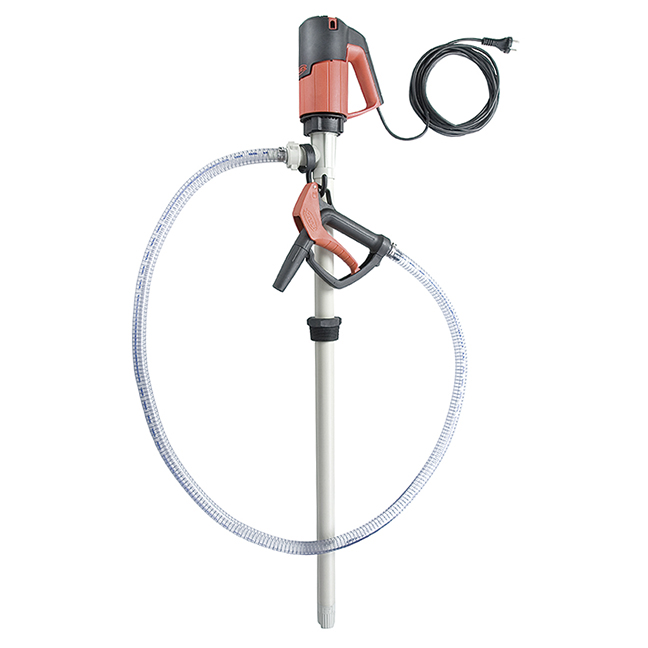

Pre-assembled pump kit to pump alkalis of  200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 424/F 430 sealless or with mechanical seal with outer tube in polypropylene, commutator motor FEM 4070,  hose, hand nozzle and compression gland.

Technical data:

  • Flow rate: max. 60 l/min1
  • Delivery head: max. 9,5 mwc
  • Viscosity: min. 1 mPas - max. 600 mPas
  • Outer tube diameter: max. 41 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Polypropylene
  • Media / Fluids: Alkalis
  • Seal: Sealless or with mechanical seal
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

With drum pump F 424:

  • No seal in the liquid area
  • No contamination of the medium from lubricants or wear of seal materials possible
  • Free from wear

With drum pump F 430:

  • Pump with mechanical seal
  • Pump can be taken apart without tools into two parts

Benefits

With drum pump F 424:

  • No seal wear
  • No bearing wear
  • Low maintenance
  • Built to last

With drum pump F 430:

  • Easy disassembly
  • Universally and flexibyl applicable
  • Easy to clean as no medium can get into the inner tube
  • No carrying-over of the medium - one pump can be used for different media
