FES 800 for cleaning agents and disinfectants

Branch: IndustrieBranch: OberflächentechnikBranch: Farben und LackeBranch: Chemie
  • .

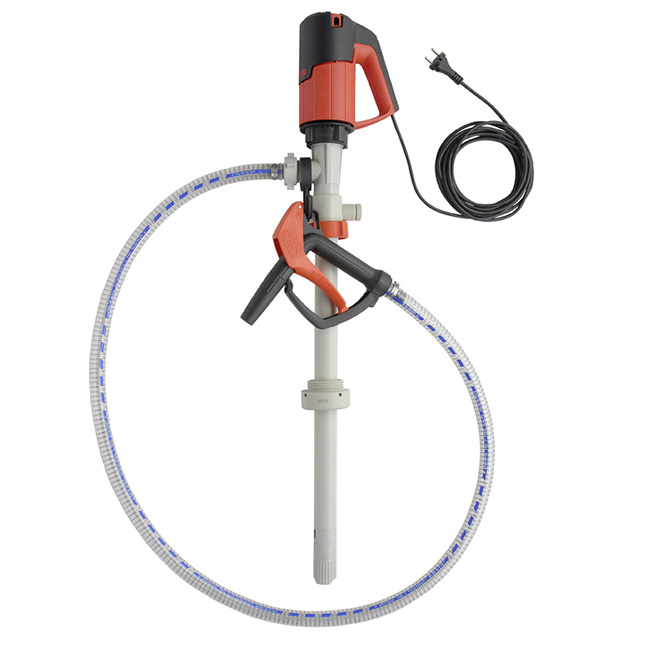

Pre-assembled pump kit to pump cleaning agens and disinfectants out of 60 l hobbocks. Comprising drum pump F 424, outer tube in polypropylene with commutator motor FEM 4070. Fume gland to protect operator and environment of dangerous vapours. Furthermore, hose and hand nozzle are included.

Technical data:

  • Flow rate: max. 60 l/min1
  • Delivery head: max. 9,5 mwc
  • Viscosity: min. 1 mPas - max. 600 mPas
  • Outer tube diameter: max. 41 mm
  • Immersion length: 800
  • Materials outer tube: Polypropylene
  • Media / Fluids: Aggressive media, Thin media, Alkalis, Acids
  • Seal: sealless
  • Container: Small containers, Hobbocks
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

  • With fume gland
  • Immersion length 800 mm
  • No seal in the liquid area
  • No contamination of the medium by lubricants
  • Free from wear
  • Relief openings provide the same fluid level inside the pump compared to the drum content

Benefits

  • No risk of vapours escaping
  • Immersion length adjusted on 60 l hobbocks
  • Optimum centre of gravity - the container does not fall
  • Non-sensitive to dry-running
  • No seal wear
  • No bearing wear
  • No contamination of the medium by abrasion of sealans
  • No contamination of the medium by lubricants
  • Low maintenance
  • Built to last
