COMBIFLUX for smaller quantities

Branch: IndustrieBranch: OberflächentechnikBranch: LandwirtschaftBranch: Chemie
  • .

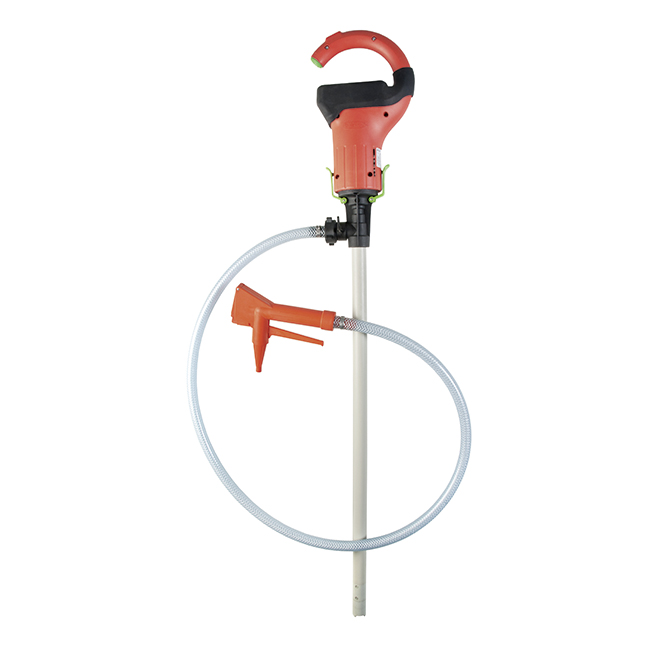

The small drum pump COMBIFLUX with removable motor FBM-B 3100 is particularly suitable for pumping comparatively small quantities from containers such as cans or up to 200 litre drums. The small diameter of the outer tube allows pumping even out of narrow openings. The pump kits consists of pump with motor, 1,5 m hose and hand nozzle.

Technical data:

  • Flow rate: max. 21 l/min1
  • Delivery head: max. 5,0 mwc
  • Viscosity: min. 1 mPas - max. 250 mPas
  • Outer tube diameter: min. 25 mm - max. 32 mm
  • Immersion length: 700, 1000
  • Materials outer tube: Polypropylene
  • Media / Fluids: Alkalis, Acids, Aqueous salt solutions
  • Seal: sealless
  • Container: 200 l drums, Small containers, Hobbocks
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

  • Connection motor and pump via quick-action coupling
  • Sealless in the liquid area
  • Small outer tube diameter
  • Holding hook for hand nozzles at the pump discharge
  • Low weight

Benefits

  • Motor easy to remove
  • Several pumps can be operated in series with one motor
  • Also suitable for filling smaller quantities
  • Can transfer from narrow-necked and containers difficult to access
  • Minimal force required to change drums
  • Hand nozzle always quickly at hand due to holding hook
  • Low storage space required
