AdBlue® F 424

Branch: PetrochemieBranch: Landwirtschaft
  • .

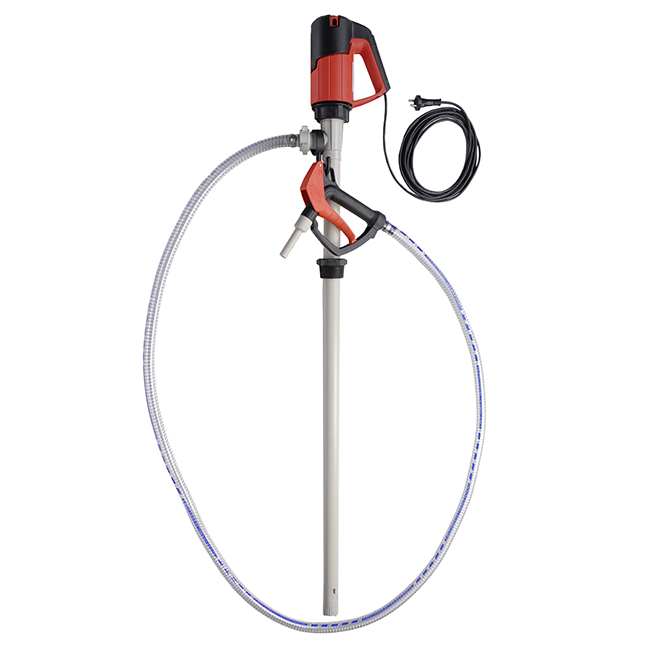

Pre-assembled pump kit to pump Adblue®. Comprising pump F 424 free of non-ferrous metals and sealless in the medium area, commutator motor FEM 4070, hose, hand nozzle and compression gland.

Technical data:

  • Flow rate: max. 50 l/min1
  • Delivery head: max. 18 mwc
  • Viscosity: min. 1 mPas - max. 800 mPas
  • Outer tube diameter: max. 41 mm
  • Immersion length: 1200
  • Materials outer tube: Polypropylene
  • Media / Fluids: AdBlue®
  • Seal: sealless
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

* AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA) *

Product attributes

  • No contamination of the medium by lubricants
  • Free of wear
  • Relief openings provide the same fluid level inside the pump compared to the drum content
  • No seal in the liquid area
  • Free of non-ferrous metals

Benefits

  • Non-sensitive to dry-running
  • No seal wear
  • No bearing wea
  • No contamination of the medium from lubricants or wear of seal materials possible
  • Low maintenance
  • Built to last
