High-pressure pumps
For applications requiring a liquid pressure of more than 6.9 bar
High-pressure pumps from ARO® are suited to applications in which the 6.9 bar standard liquid pressure of pumps can be greatly exceeded. For the high-pressure pumps available from ARO®, a distinction should be made between those with a ratio of 2:1 and up to 13.8 bar and those with a ratio of 3:1 and a liquid pressure of up to 20.4 bar.
Examples of areas of application for High-pressure pumps from ARO®:
- High-viscosity liquids
- Liquids containing a high proportion of solids
- Feeding filter presses
- Large delivery head / high backpressure

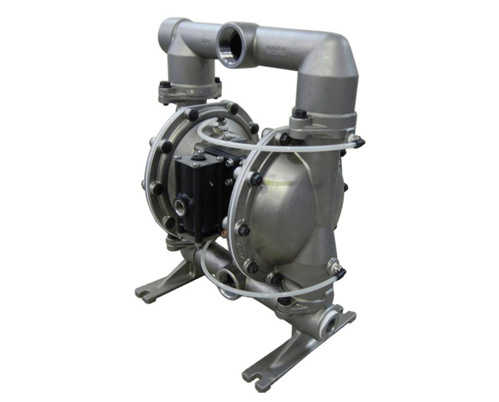

High-pressure pump, ratio 2:1
Technical data:
- Delivery pressure: 13.8 bar
- Operating pressure: 6.9 bar
- Pump capacity: up to 605 l/min.
- Nominal widths: 1 1/2", 2" and 3"
- Housing materials: Stainless steel
- Diaphragm materials: PTFE, Santoprene or Hytrel
- Ball and valve seat materials: Stainless steel or hardened stainless steel
- Max. particle size: up to 9.5 mm
Advantages:
- High liquid pressure of up to 13.8 bar compared with standard pumps offering up to 6.9 bar
- Modular main valve for simple repairs
- Folded diaphragms ensure long service life
- The special Simul shaft and Quick-Dump valve technology help prevent the ARO® high-pressure pump from stopping and icing over

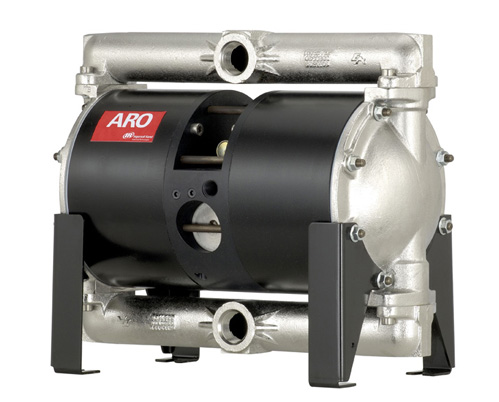

High-pressure pump, ratio 3:1
Technical data:
- Delivery pressure: 20.6 bar
- Operating pressure: 6.9 bar
- Pump capacity: 98.4 l/min.
- Nominal width: 1"
- Housing materials: Stainless steel
- Diaphragm materials: PTFE, Santoprene or Hytrel
- Ball and valve seat materials: Stainless steel or hardened stainless steel
- Particle size: 3.2 mm
- Weight: 43 kg
Advantages:
- High liquid pressure of up to 20.6 bar compared with standard pumps offering up to 6.9 bar
- High liquid rates of up to 90.7 l/min
- Saves space thanks to compact size and small footprint
- Very good material compatibility
- Quick and easy maintenance
