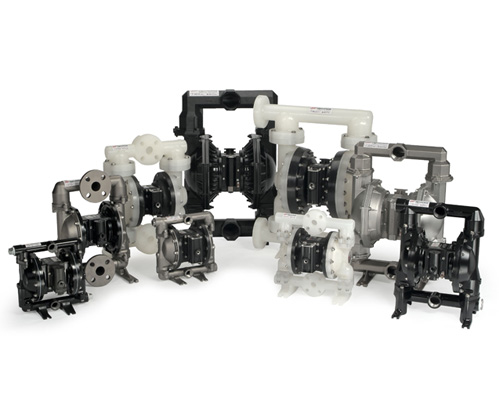

Double diaphragm pumps from the EXP series
The number one choice of process professionals with the lowest overall costs on the diaphragm pump market
The diaphragm pumps from the EXP series win over customers as they offer the best overall operating costs of all diaphragm pumps on the market. These double diaphragm pumps provide the perfect solution in terms of energy efficiency and downtime. With various materials and delivery quantities of up to 1079 l/min, ARO also provides the perfect solution for every application.
The diaphragm pumps from the EXP series can be automated through the use of electronic interfaces!
Product catalogue ARO® EXP series
Advantages of ARO® double diaphragm pumps from the EXP series:
- The ability to automate these pumps with virtually any automation system (ARO controller, PLC- or PC-based system) through the use of an electronic interface allows you to turn imprecise, manual processes into efficient and intelligent liquid management.
- Optional leak sensors detect diaphragm failure and minimise costly downtimes
- Patented SimulShift™ design of symmetric air valves for start-up safety, to avoid problems with starting up in conjunction with other pumps
- Quick Dump™ check valves are used to remove cold exhaust air from components prone to icing over to prevent icing and failure
- With service lives four times the length of other manufacturers on the market, downtimes are reduced
- Simple and speedy repairs thanks to low-cost service kits
- Available for use in hazard zones (ATEX, NEC and CEC certificates)
The diaphragm pumps from the EXP series are available in the following materials
| Non-metallic materials | Polypropylene, Acetal and PVDF |
|---|---|
| Metallic materials | Aluminium, Cast iron, Stainless steel and Hastelloy |
Overview of ARO® plastic double diaphragm pumps from the EXP series
| Nominal width | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/2" | 2" | 3" |
|---|---|---|---|---|---|---|---|---|
| Maximum volumetric flow (l/min) | 20 | 40,1 | 54,5 | 56 | 200 | 465 | 696 | 1079 |
| Maximum outlet pressure (bar) | 8,6 | 6,8 | 6,8 | 6,8 | 8,3 | 8,3 | 8,3 | 8,3 |
| Material connection | 1/4" NPT, BSP |
3/8" NPT, BSP |
1/2" NPT, BSP |
3/4" NPT, BSP |
1" NPT, BSP, ANSI / DIN flange |
1 1/2" ANSI / DIN flange |
2" ANSI / DIN flange |
3" ANSI / DIN flange |
| Air connection | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/2" NPT | 3/4" NPT | 3/4" NPT |
| Materials | Polypropylen PVDF Groundable Acetal |
Polypropylene PVDF Groundable Acetal |
Polypropylen PVDF Groundable Acetal |
Polypropylene | Polypropylene PVDF conductive Polypropylene |
Polypropylene PVDF conductive Polypropylene |
Polypropylene PVDF conductive Polypropylene |
Polypropylene PVDF |
| Maximum proportion of solids (mm) | 1,6 | 1,6 | 2,4 | 2,4 | 3,2 | 6,4 | 6,4 | 9,5 |
| ATEX | Yes with conductive acetal |
Yes with conductive acetal |
Yes with conductive acetal |
- | Yes with conductive PP / PVDF |
Yes with conductive PP |
Yes with conductive PP / PVDF |
- |
Overview of ARO® metallic double diaphragm pumps from the EXP series
| Nominal width | 1/2" | 3/4" | 1" | 1 1/2" | 2" | 3" |
|---|---|---|---|---|---|---|
| Maximum volumetric flow (l/min) | 45,4 | 51,5 | 197 | 465 | 651 | 1.041 |
| Maximum outlet pressure (bar) | 6,9 | 6,9 | 8,3 | 8,3 | 8,3 | 8,3 |
| Material connection | 1/2" NPT, BSP |
3/4" NPT, BSP |
1" NPT, BSP, ANSI / DIN flange |
1 1/2" NPT, BSP, ANSI / DIN flange |
2" NPT, BSP, ANSI / DIN flange |
3" NPT, BSP, ANSI / DIN flange |
| Air connection | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/2" NPT | 3/4" NPT | 3/4" NPT |
| Materials | Aluminium Stainless steel |
Aluminium | Aluminium Cast iron Stainless steel Hastelloy |
Aluminium Cast iron Stainless steel Hastelloy |
Aluminium Cast iron Stainless steel Hastelloy |
Aluminium Cast iron Stainless steel Hastelloy |
| Maximum proportion of solids (mm) | 2,4 | 2,4 | 3,2 | 6,4 | 6,4 | 9,5 |
| ATEX | All types | All types | All types (with metallic motor) | All types (with metallic motor) | All types (with metallic motor) | All types (with metallic motor) |
