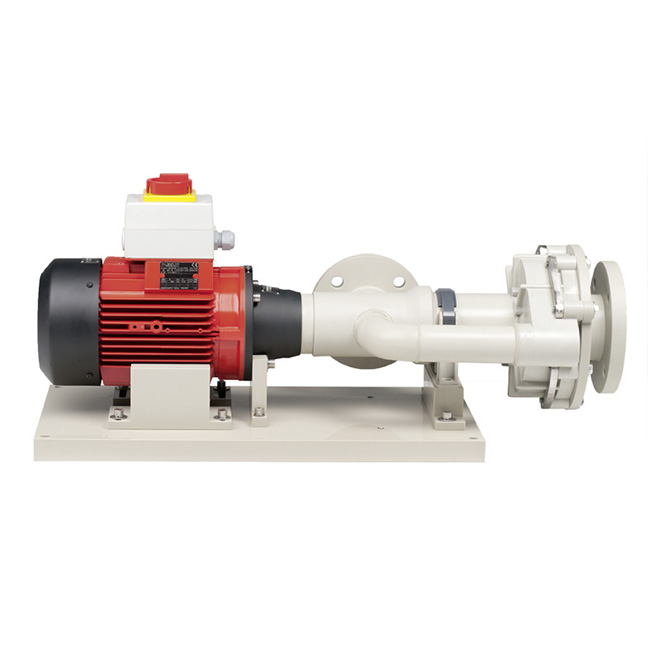

- FLUX Centrifugal immersion pumps 600
F 640 TR
For horizontal use
![Branch: Industrie Branch: Industrie](files/flux-pumps/stories/flux-de/products/industry-icons/ind_industry.png)
![Branch: Oberflächentechnik Branch: Oberflächentechnik](files/flux-pumps/stories/flux-de/products/industry-icons/ind_surface-technology.png)
![Branch: Petrochemie Branch: Petrochemie](files/flux-pumps/stories/flux-de/products/industry-icons/ind_petrochemistry.png)
![Branch: Wasser-/Abwasseraufbereitung Branch: Wasser-/Abwasseraufbereitung](files/flux-pumps/stories/flux-de/products/industry-icons/ind_water-preparation.png)
![Branch: Farben und Lacke Branch: Farben und Lacke](files/flux-pumps/stories/flux-de/products/industry-icons/ind_dye-lacquer.png)
![Branch: Chemie Branch: Chemie](files/flux-pumps/stories/flux-de/products/industry-icons/ind_chemical.png)
For pumping and conveying of large quantities of heavy flammable liquids out of containers, tanks, open containers etc. The pump is used either horizontally mounted onto a base plate or fixed vertically.
Technical data:
- Flow rate: max. 733 l/min1
- Delivery head: max. 33 mwc1
- Viscosity: min. 1 mPas - max. 2000 mPas1
- Diameter pump housing: max. 230 mm2
- Diameter mounting flanges: max. 185 mm2
- Materials outer tube: Polypropylene
- Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
- Seal: mechanical seal
- Container: Tanks > 1000 liters
- 1 dependent on pump model, motor and medium
- 2 dependent on pump model
* AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA) *
Product attributes
- With console for dry installation
- Consisting of an inner and outer tube as well as a drive shaft mounted in the inner tube
- Shaft seal with mechanical seal in ceramic oxide, O-rings made of FKM
- Available in two sizes: 30 and 230 TR
- With open concical impeller at type 30 TR or with closed centrifugal impeller at type 230 TR
- Centrifugal impeller ø 100-160 for size 230 TR
- Depending on the model, available with threaded or flanged connections at suction and discharge side
Benefits
- Can be used horizontally or vertically
- Pumps also fluids containing solids
- Motor can be changed
- Pump is hermetically sealed
- Appropriate motors
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
